Product Introduction
Yichen is a professional helical pile manufacturer. Steel Grillage is a steel structure platform set on the top of the pile foundation to connect the piles in order to bear and distribute the load transmitted by the pier body. It connects several or even a dozen piles together to form the pile foundation. Steel Grillage can be attached to helical piles, driven piles, drilled shaft, or micropiles.
Yichen Steel Grillages are fully customizable and designed to support power transmission structures. They can be engineered to withstand axial, shear and moment combinations of even the largest dead-ends . They eliminate the need for concrete and associated curing time. Structures can be set on foundations immediately after installation. Smaller Yichen Steel Grillages are shipped in one piece and larger grillages are easily assembled on-site using only small equipment. All components are manufactured by Yichen factory and fully galvanized according to corrosive environment.
Product Parameter (Specification)

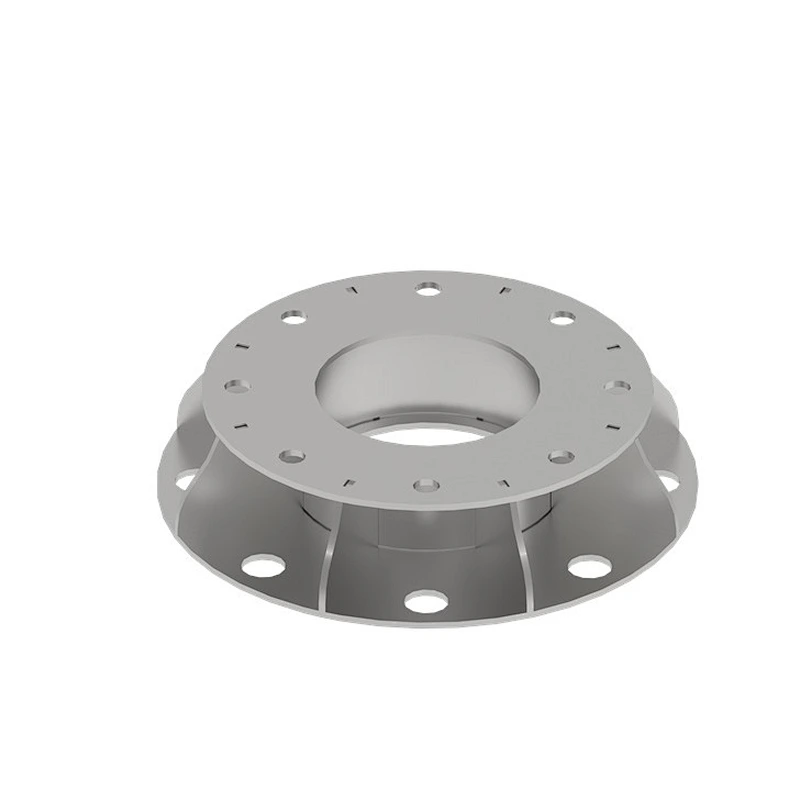

| 8-Pile Steel Grillage |
| Item | Parameters |
| Bearing Capacity | 27T |
| Number of Piles | 8 |
| Pile Ring Diameter | 2900mm |
| Matching Helical Pile |
| Helical Pile Type | Pile Bearing Capacity (T) | Pile Pullout Resistance (T) |
| Φ76 | 25 | 27 |
| Φ88.9 | 24 | 24 |
| Φ114.3 | 50 | 60 |
| Φ140 | 90 | 134 |
Product Applications● Structural support (compression or tension) for both permanent and temporary structures● Pole bases, Walkways, boardwalks, Telecommunication masts/platforms, Electrical equipment, pylons and poles● Underpin existing foundations, Temporary/permanent seating (stands), Buildings/modular buildings（mobile houses）● Rail structures (signalling, platforms, overhead line equipment), Highways structures (signage)● Retaining walls, flood defences, sea walls, bulkheads, Slope stabilization● Wind turbines, Solar farms, Fencing, Utility and pipeline tie downs● Concrete slab lifting and stabilization, concrete-less foundationsA helical pile informatization installation system with 50000Nm can be used in nearly any situation and where driven or cast in place piles are currently used.Product Feature● Steel Grillages are widely adaptable and compatible with any tower structure type● Helical Piles that support steel grillages are smaller than single concrete caissons and require minimal crew and equipment for installation● There is no need to wait for the concrete to solidify, which greatly saves construction time, and the rapid construction time can be as short as one day● Steel Grillages are manufactured through a continuous, multi-step quality control process to ensure quality
